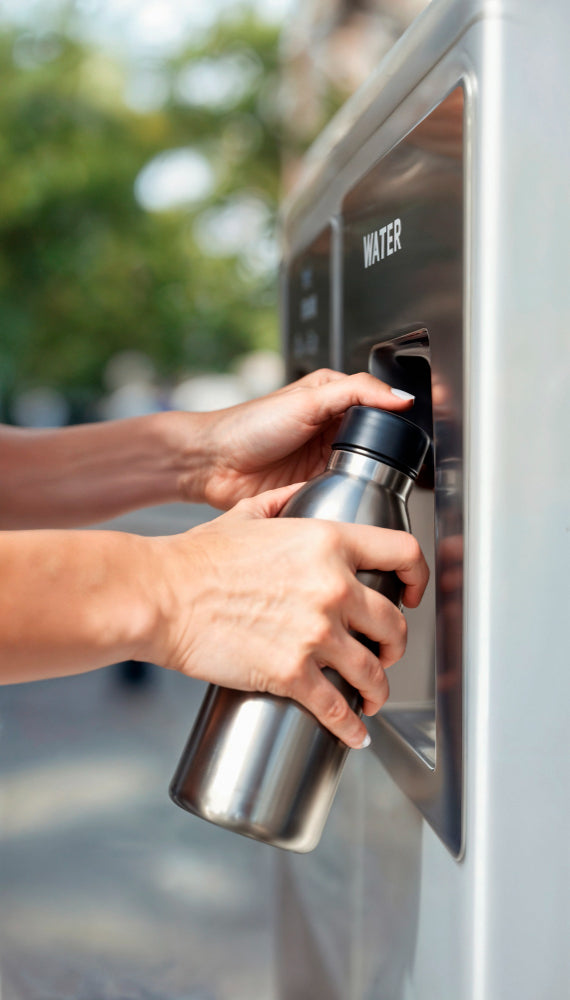

Existing Atlantic water-dispensing photograph for collection context. It does not identify a model or demonstrate ice-only, combined, chilled-water or filtration functions.
The dispenser has a water connection. The quote calls it an ice-and-water station. Then someone asks for plain water, without ice, and the proposed version cannot provide it.
Buy against the outputs people actually need: water alone, ice alone, or both together. A connection that supplies water for ice making does not establish a separate plain-water dispensing function. Get the exact offered version and its service modes onto the quote before comparing daily ice figures.
Give each service request its own answer
“Ice and water” can describe a category, a combined serving, or several independently selectable outputs. These are different requirements. A staff member filling an ice container and a visitor wanting a bottle of plain water need different responses from the equipment.
Describe the requested result in ordinary language. Does a plain-water request need to produce water with no ice? Must users collect ice without an accompanying water stream? Is a combined serving also required? State whether the person collecting it selects the result or whether staff serve it. Leave the particular control arrangement to the documented offered configuration.
There are real machines with all three outputs. Hoshizaki Australia's DCM-60KE-P product page explicitly lists ice only, water only, and ice with water. That is useful evidence of the named page's modes. It does not make every dispenser, similar model code or substituted version equivalent. Nor does “water only” by itself promise a particular water temperature.
The revised unit fixes two missing service modes
This completed buying example is fictional. The venue, M1/M2 units, configurations and recorded findings are invented to show the decision. They are not a trial of the Hoshizaki model or observations at an Atlantic customer site.
The venue wants one collection station for three unchanged requests: a bottle of plain water without ice, an ice-only container, and a combined ice-and-water serving. No volume, delivery speed or water temperature is specified in this example. These would need their own requirements if important to the buyer.
Offer A names unit M1. Its supplier initially describes the station as “ice and water” because M1 makes ice from a plumbed water supply. When asked to identify the selectable outputs, the provider confirms that this exact version dispenses ice only. It has no plain-water dispensing function. Adding a filter to its inlet would not add that missing output.
The buyer returns A against the unchanged three-request brief. The revised offer B names complete unit M2, configuration C2, with the documented control package for independently requested water-only, ice-only and combined outputs. The provider identifies those modes on the revised specification and includes that control package in the offer, rather than leaving it as an unspecified option.
| Unchanged request | A: M1 ice-only version | B: M2 with C2 controls | Decision |
|---|---|---|---|
| Plain water, no ice | Provider confirms no plain-water output; request cannot be met | Recorded result: water dispensed, no ice present | B addresses the missing water-only function |
| Ice, no water stream | Recorded result: ice dispensed, no water stream | Recorded result: ice dispensed, no water stream | Both meet this defined request |
| Ice and water together | No water-dispensing function; combined request cannot be met | Recorded result: both ice and water dispensed | B addresses the missing combined function |
Scroll the table sideways to see every column.
Progress B's exact M2/C2 package and remove A from this unchanged brief. The reason is concrete: A supplies only one of the three requested outputs; B's documented configuration and fictional completed mode record cover all three. A larger ice bin or higher ice-production figure would leave A's two missing functions unchanged.
This finding concerns the requested output types. It does not establish delivery speed, the amount available during a busy period, user access, water temperature or suitability for the actual installation. Keep those questions attached to B before ordering.
A different supported three-mode unit could also satisfy the brief. The owner could instead consider separate ice and water units, with the resulting space and collection arrangement assessed as a complete station. What fails here is quietly substituting an ice-only machine while keeping the original one-station promise.
Keep the mode package on the final quote
Ask for the complete model code, version and included controls. Have the supplier mark each required output as included, optional or unavailable, with the applicable document beside the response. A photograph of a fascia or a broad range heading is a poor substitute for the exact offered specification.
If an option supplies a required mode, put that option on the priced equipment line. If a later revision changes the unit or controls, reopen the three requests against the new proposal. The previous result belongs to M2/C2, not to anything subsequently called a dispenser.
Then resolve the actual site and collection task. Ask the relevant providers to identify the applicable water-input, waste, electrical, cooling and service-access requirements for that exact package, and who includes each item. The cited Hoshizaki page identifies its named unit as air cooled; that is not a cooling assumption for fictional M2 or every dispenser.
Keep any required water characteristics, treatment proposal and water-output temperature explicit. A filter listing is not evidence that the offered unit supplies chilled water, and this mode comparison makes no water-quality or health claim. The responsible provider needs to answer the actual site requirements using applicable equipment documentation.
For the physical collection space, use the separate countertop ice-machine access guide. It deals with the complete unit, receiving container and access envelope; this article answers what comes out when each service is requested.
Send a brief the supplier can answer
“We need plain water without ice, ice without a water stream, and a combined ice-and-water serving at one station. Please identify the exact unit, version and included controls that provide each output. Mark any required option on the quote, supply the applicable mode documentation, and identify the remaining site and collection checks. Reconfirm these requirements against any substitution.”
Attach the intended receiving containers and explain who collects each service. Add quantity, temperature and peak-period requirements where the venue actually needs them, keeping measured information separate from forecasts. The useful comparison is now between complete proposals answering the same requests, rather than two machines sharing a category name.
About this guide
Prepared by the Atlantic Equipment Team to help buyers specify dispensing functions and compare complete offers. The worked M1/M2 case and findings are fictional. The named manufacturer's page supports only the narrow product-mode and cooling references stated here; actual model selection and site requirements need applicable supplier documentation.
