Overview

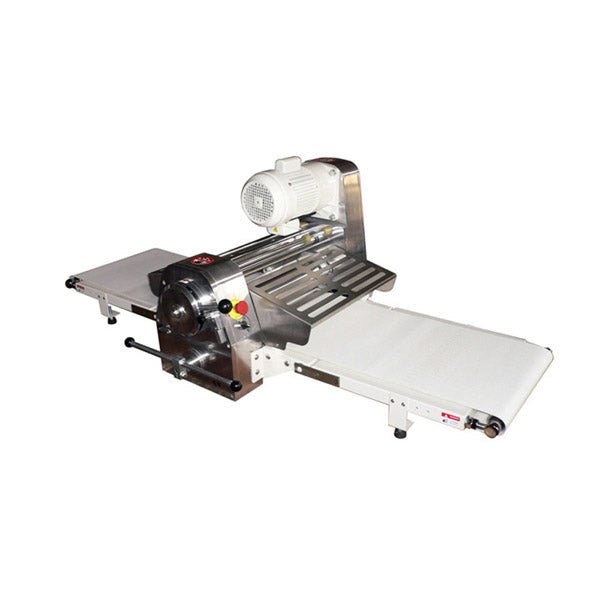

Yasaki JDR-520B Bench Dough Sheeter

The Yasaki JDR-520B is a single-phase bench dough sheeter built to handle the demands of busy commercial bakeries and food production kitchens. Constructed from steel, stainless steel and aluminium throughout, it avoids the plastic components and casings found on many competing models, delivering a robust, long-lasting machine suited to continuous daily use.

With a 500mm belt width, 830mm table length and adjustable thickness range of 1 to 35mm, the JDR-520B accommodates a wide variety of dough types and recipe requirements. A 5kg dough weight capacity, large 40mm roller opening with hard chrome rollers, and a quality food-grade conveyor belt combine to produce consistent, even sheeting results every service.

Key Benefits

• Adjustable thickness from 1 to 35mm covers everything from delicate pastry to thick bread dough, reducing the need for manual reworking.
• Hard chrome rollers and a large 40mm roller opening handle heavier dough loads while maintaining an even sheet across the full 500mm belt width.
• Food-grade conveyor belt outperforms cotton belts in hygiene and durability, reducing the risk of contamination and premature belt wear.
• Easy-to-remove scraper assemblies simplify cleaning and come at a low replacement cost, minimising downtime between shifts.
• Folded-position access to the conveyor drive-rollers makes thorough cleaning straightforward, preventing dough build-up that can cause belt damage.
• Internal roller-locking mechanism eliminates the ratchet found on other machines, removing a wear point and reducing the risk of knuckle injuries to operators.
• No external switches mean flour cannot enter the control mechanism, protecting the unit from damage and reducing maintenance requirements.
• Safety guards with internal safety switching provide operator protection without compromising ease of use.
• All-metal construction using steel, stainless steel and aluminium ensures the machine withstands the rigours of a commercial kitchen environment for years of reliable service.

Key Features

• Tyrone bench model single-phase dough sheeter
• Belt width: 500mm
• Table length: 830mm
• Adjustable dough thickness: 1 to 35mm
• Large roller opening: 40mm
• Large hard chrome rollers
• Dough weight capacity: 5kg
• Constructed from steel, stainless steel and aluminium; no plastic components or casings
• Quality food-grade conveyor belt (not a cotton belt)
• Easy-to-remove and clean scraper assemblies with low-cost replacement parts
• Safety guards fitted with internal safety switching
• No external switches, preventing flour ingress and subsequent damage to controls
• Internal mechanism locks rollers in position, eliminating a ratchet that could wear or catch operators
• Folded-position access to conveyor drive-rollers for thorough cleaning
• Power: 240V single phase, 375W
• Overall dimensions: 2080mm (W) x 880mm (D) x 620mm (H)
• Weight: 174.5kg
• 2-year parts and labour warranty

Specifications

• Width (mm): 2080
• Depth (mm): 880
• Height (mm): 620
• Weight (kg): 174.5
• Packed Width (mm): 720
• Packed Depth (mm): 970
• Packed Height (mm): 1000
• Power Delivery: 240V; 375W
• Warranty (months): 2 Years Parts and Labour
