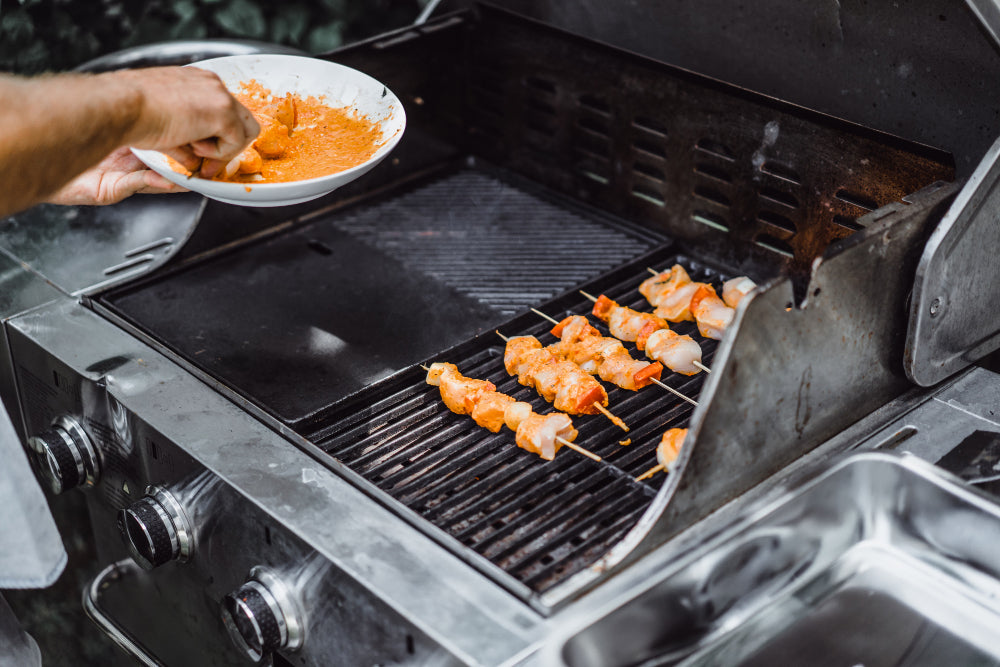

Illustrative grill photograph, not either worked map or a documented product trial. The pictured arrangement establishes no dimensions, independent controls, handling method, food result or installation approval.
The grill has enough total surface on paper. The menu still does not fit. One group needs a wider section than the plan gives it, while the space apparently left over belongs to another simultaneous task. Moving the line between the groups fixes one problem and creates another.
Choose a commercial chargrill from the usable contact layout and complete service handoff. Record the actual products, supported positions, controls and collection requirements. External width, burner count and total rated area cannot establish that the menu works together.
The worked maps below compare two fictional allocations of the same rectangle. Neither satisfies the complete stated footprint brief. They show what a buyer should take into a demonstration, including the landing space beyond the grill. For the wider heat-source and site comparison, use the commercial gas and electric proposal guide.
Describe the contact task before the grill size
List the products that must occupy the station together. Record their actual shape, orientation, quantity and contact footprint in the condition presented to the task. A long skewer can occupy space outside the food itself. Handling access and the manufacturer's permitted arrangement also matter.
Define the required result with the venue's responsible lead and supplier. Different menu items may require different supported applications or controls; do not turn a line drawn on a plan into proof of independent temperatures or a suitable food process. Keep those requirements attached to each task.
State whether a group can be split between positions or successive loads. If service needs six items together, comparing a four-item demonstration silently changes the brief. A staggered service may be a real alternative, but record the new request pattern and establish whether the actual operation permits it.
Obtain the exact offered surface arrangement. Moffat Australia's G596-LS page describes reversible top grates and removable radiants and baffles for that named product. Those details illustrate why the supplied configuration and instructed care matter. They establish neither the fictional zone dimensions below nor a universal result from one grate type.
Worked maps: the area adds up while the groups do not fit
Everything in this example is invented. Assume an 800 × 400 mm paper contact rectangle and two task groups requested together. Group A has four rectangular templates, each 200 × 160 mm. The brief places them in two columns and two rows, requiring 400 × 320 mm. Group B has six templates, each 150 × 150 mm, in three columns and two rows, requiring 450 × 300 mm.
These are specified template arrangements, not real portion sizes, loading instructions or a maximum packing calculation. No handling gaps, actual product movement, support details or thermal behaviour are included. Rotating, interleaving or splitting the groups would be a different arrangement needing assessment.
Scroll the diagram sideways to read every label.
| Map and group | Allocated width | Required group width | Width remainder | Depth remainder |
|---|---|---|---|---|
| 1 / A | 400 mm | 400 mm | 0 mm | 400 − 320 = 80 mm |
| 1 / B | 400 mm | 450 mm | −50 mm | 400 − 300 = 100 mm |
| 2 / A | 350 mm | 400 mm | −50 mm | 80 mm |
| 2 / B | 450 mm | 450 mm | 0 mm | 100 mm |
Scroll the table sideways to see every column.
Map 1 fails B's specified width. Map 2 gives B the missing 50 mm by taking it from A, which then fails. Both maps retain the same overall area. Neither is rescued by adding the empty areas elsewhere on the surface.
The templates themselves total 4 × 200 × 160 + 6 × 150 × 150 = 263,000 mm². That is less than the rectangle's 320,000 mm², leaving 57,000 mm² in an area-only subtraction. Yet the stated side-by-side group arrangements require 400 + 450 = 850 mm: 50 mm more than available. Area alone has answered the wrong question.
Even a revised 850 mm-wide paper rectangle would only contain the specified groups geometrically. Exact zero remainder beside either group is not an approved gap or usable operating capacity. Actual product positions, controls, support and handling need their own evidence.
Keep a simultaneous request separate from a cooking rate
For this example the service request is simply four A items and six B items available for their nominated tasks together at a fictional 12:00 planning checkpoint. No cooking start, duration, temperature or completion time is supplied. The maps therefore establish no items per hour or customer waiting time.
If the supplier proposes successive loads, record which items move to another event and whether the menu can accept that change. A smaller group may fit the paper map, but the resulting service plan is different. Any earlier production or holding arrangement needs the venue's appropriate process evidence; this guide supplies none.
Similarly, independent control claims need to refer to the exact model and arrangement. Ask for a demonstration of the required product results and supported simultaneous workload. Do not infer a suitable cooler holding area, thermal boundary or separation of foods from a spare strip of grate.
Test the landing at the same time as the surface
The grill is one part of the station. Identify the incoming preparation position, tools, collection containers and onward plating handoff. Establish which surfaces belong to which task and how the venue manages the actual processes. A container on the wrong surface is not a valid solution to a drawing shortage.
Assume, for a separate paper screen, two receiving containers each require a 400 mm front width and 300 mm depth in a specified side-by-side orientation. The allocated landing is 700 × 450 mm. Their combined width is 800 mm, so that nominated arrangement exceeds the landing by 100 mm, despite fitting within its depth.
Rotating or relocating a container is another proposal to draw and assess. Do not assume stacking, using the grill edge or borrowing the incoming preparation area is appropriate. The screen identifies the missing receiving arrangement without inventing a safe transfer or handling method.
Ask the responsible team to assess the complete exchange with the actual containers, tools and representative product arrangement. Include the next incoming task and the clearing of the landing. A successful isolated footprint screen cannot establish the work of a full station.
Compare the supplied system, not a flavour or fuel promise
Have the provider explain the offered grate, radiant or other supported configuration, available controls and included options against the required result. Record exact parts and model references. A broad lava-rock or radiant label does not establish cooking performance, cleaning workload or a preferable flavour for the venue.
Retain instructed cleaning, grease-management and service-access requirements in the purchase scope. Obtain the current matched documents and appropriate training from the provider. This article supplies no hot-surface handling, cleaning sequence, servicing interval or modification instruction.
Have appointed providers assess the complete installed arrangement, including the actual fuel or electrical configuration, ventilation, neighbouring equipment and site requirements. No generic exhaust quantity, clearance or gas connection specification can be derived from these drawings. For coordinated equipment changes, use the fitout services guide.
Keep financial comparisons separate. Burner input, nominal surface area and the invented 12:00 request do not establish energy consumption, labour savings or output. Compare actual offers against the same accepted task before attaching a commercial conclusion.
Prepare the menu-zone and handoff brief
For your own supplier brief, record product envelopes, simultaneous menu allocation, reserved zones, landing requirements and demonstrated results. Replace the fictional inputs with actual evidence and leave unresolved decisions visible.
Please assess this simultaneous menu request against your exact supported surface and controls. Show actual product footprints and handling requirements, demonstrate the required results, and include receiving landings, onward handoff, instructed care and site scope. Keep every unproven arrangement visible in the offer.
Use that brief with Atlantic's commercial chargrill range, or send the menu and station requirement. The decision is a complete supported task arrangement, with any changed request pattern clearly stated.
Source and example boundaries
Moffat Australia's G596-LS product page was checked on 18 October 2026 for its named reversible-grate and removable-component description only. No listed rating, dimension, feature outcome or operating instruction is transferred to the fictional maps. Confirm current matched Australian documentation for the actual offer.
All footprints, group quantities, allocations, containers and the planning checkpoint are invented. No trial, food result, actual zone independence, hygiene separation, operating throughput or installation approval is claimed.
About this guide
Prepared by Atlantic Equipment. This guide tests a chargrill purchase against the menu's simultaneous contact and collection needs. Its two width maps show why spare total area can coexist with a failed group arrangement. The editable brief keeps product results, controls, landings and unresolved site requirements attached to the same purchase decision.
