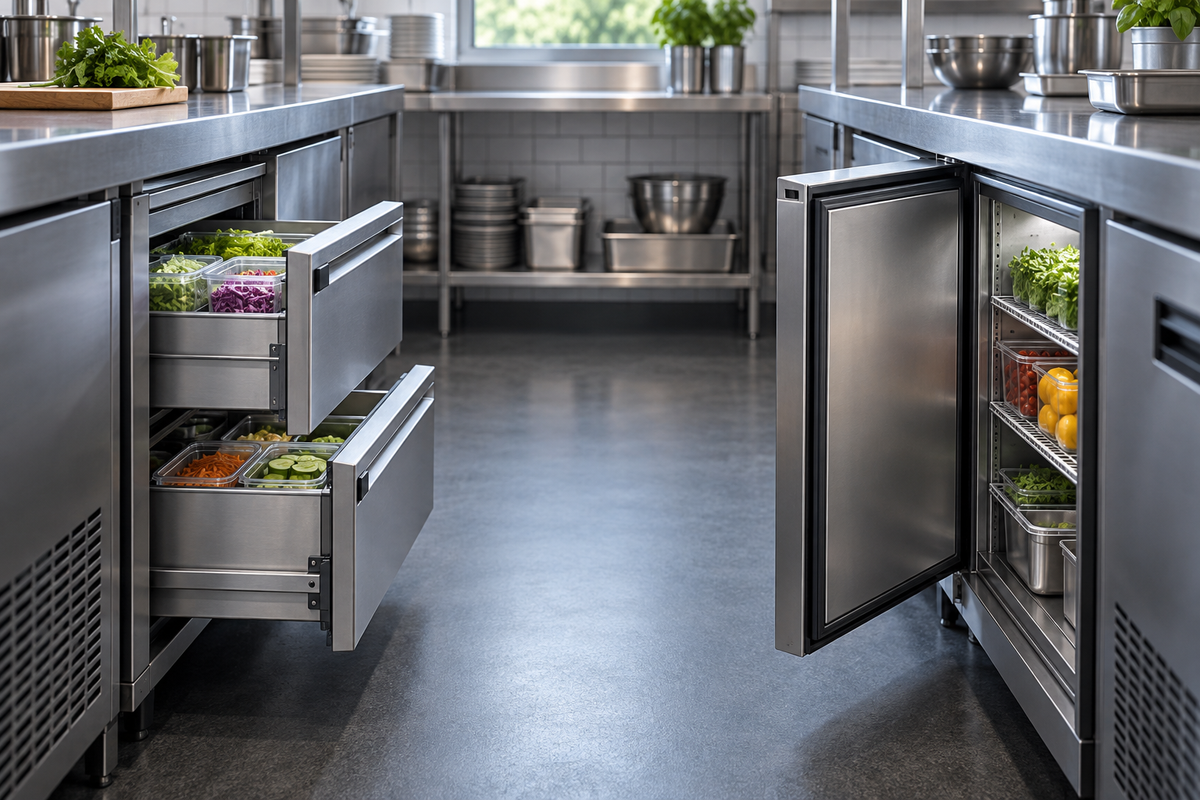

Concept image only: not S1, an assessed installation or an approved storage arrangement. The shown containers and openings do not establish fit, access or operating suitability.
The drawer fridge looks easier to use. Pull it open and the ingredient pans are visible from above. Then the delivery arrives with tall containers that cannot stand inside that drawer—and the useful storage plan has moved to another cabinet.
Compare doors and drawers using your actual containers, retrieval tasks and open positions. Closed cabinet dimensions and litres cannot tell you which arrangement supports the whole service. Drawers can answer one access problem while leaving a stock-height problem unresolved; a door can admit taller stock while obstructing the next task.
This guide compares a fictional eight-container stock list and two opening envelopes. It gives you a brief for assessing exact configurations, rather than declaring a winner for every kitchen. Start with the commercial refrigeration buying guide if the cabinet format itself is still undecided.
Build a stock list that includes lids and the next retrieval
Identify the containers that must be stored, including lids, handles, bottle closures and any projections. Record their outside footprint and full height. Empty pan depth is not the same measurement as the complete container the operator needs to put away.
Keep the normal stock quantity separate from how often someone retrieves it. Four containers might generate most of the service accesses; another two might be reached only during restocking. Both questions matter, but they describe different work. Do not multiply container count by guessed access frequency and call it measured activity.
Mark what must stay separate and what must remain identifiable. Ask the responsible food-safety lead to establish the actual storage and handling arrangements. This comparison contains no permitted holding period, temperature instruction or food-contact procedure.
Use the exact loaded stock list in the supplier discussion. An empty drawer shown with neatly arranged pans cannot establish that your taller lidded boxes, bottles and replacement stock will fit the same configuration.
Worked stock screen: twelve of eighteen picks are not the whole job
All container dimensions and access counts here are fictional. Stock S1 contains four lidded ingredient pans, two tall boxes and two bottles: eight containers in total. The example service records twelve pan retrievals, two box retrievals and four bottle retrievals, or eighteen retrievals. These are illustrative counts, not observed time or a recommended workload.
Proposal D has two drawers, each with an assumed usable vertical envelope of 180 mm at the relevant location. The supplier has not confirmed the complete internal plan or supported arrangement. The table screens height only; it does not establish quantity, footprint, load rating or thermal suitability.
| Stock group | Stored quantity / complete height | Fictional service retrievals | 180 mm drawer height minus container | Next question |
|---|---|---|---|---|
| Lidded ingredient pans | Four / 140 mm each | 12 | 40 mm | Confirm actual footprints, supports, lids, stock quantity and access |
| Tall lidded boxes | Two / 220 mm each | 2 | −40 mm | Too tall for this assumed envelope; identify another permitted configuration |
| Bottles with closures | Two / 280 mm each | 4 | −100 mm | Too tall standing as drawn; do not assume another orientation is acceptable |
Scroll the table sideways to see every column.
Twelve of eighteen retrievals concern the pans. That may make the drawer proposal worth investigating for the pan task. It does not make the other six retrievals disappear, nor prove that the four pans fit. Putting boxes or bottles somewhere else changes the complete storage and walking route.
For comparison, imagine a door proposal with an adjustable shelf arrangement that could provide a 300 mm vertical space for the tall stock. The corresponding height remainders would be 80 mm for the boxes and 20 mm for the bottles. That is another height screen only. The actual shelf footprint, retaining arrangements, loading limits, airflow and removal path remain open.
A mixed door-and-drawer offer is therefore a third question, not an automatic solution: can it support all eight containers in their permitted positions without adding an inconvenient backup route? Keep each exact configuration on a separate proposal row.
Draw the cabinet open where the operator actually works
In the fictional layout, the measured distance from the closed cabinet face to the opposite fixed bench is 1,100 mm. D's drawer projects 450 mm into that space at its proposed full extension. A different proposal's hinged door projects 550 mm in its assessed open position.
| Assumed open position | Projection from the same closed-face datum | Remaining geometric strip | What is missing? |
|---|---|---|---|
| D: full drawer extension | 450 mm | 1,100 − 450 = 650 mm | Operator stance, container removal, adjacent openings and passing work |
| H: assessed hinged-door position | 550 mm | 1,100 − 550 = 550 mm | Hinge/swing geometry, usable opening, operator and removal path |
Scroll the table sideways to see every column.
The drawer leaves 100 mm more geometric space in this invented comparison. Neither result is a minimum clearance, a safe passage width or an acceptable workstation. People, containers and adjoining equipment are absent from the subtraction.
Mark the actual hinge, opening angle, handles and nearby drawer or appliance doors. A hinged door may conflict sideways with another station even when the opposite bench is clear. A drawer may need a straight pull and removal path that a nearby operator interrupts. Obtain the exact open-envelope drawing and assess the real tasks together.
Keep instructed installation and service access separate from working access. A cabinet fitting its closed recess does not establish either. Do not obstruct a grille, panel or required access route to achieve a flush bench line.
Ask what the quoted drawer or door arrangement includes
Williams Australia's Jarrah JL2R page identifies its drawer configuration and lists selectable options, including a full drawer option. This illustrates why the actual offered configuration needs its own reference. It supplies none of S1's fictional internal heights, projections or fit results.
Foster's UK EP1/3H product information separately describes its door/drawer section configuration and footnotes for opening depth, shelves and optional pans. Use that as an example of the details worth requesting, without transferring the UK offer or its dimensions to an Australian proposal.
Ask for the exact cabinet, section layout, drawer bank, shelves, supports and supplied containers. Confirm what is included, what is optional and what must be bought separately. A format label does not establish an internal arrangement, and a representative photograph does not settle the accessory package.
Check removal as well as storage. The container must pass through the opening in the permitted orientation with its lid or handle as used. Ask how instructed cleaning and service access will be maintained in the proposed installation. This guide supplies no permission to remove runners, alter a door or modify an accessory.
Observe retrieval and restocking as two separate tasks
Bring representative actual containers to the assessment. Establish whether the intended stock can be stored and retrieved as instructed, then observe what the person must move, reach around or temporarily relocate. Keep the assessment tied to the offered configuration.
For S1, inspect the pan retrieval repeatedly used during service and the less frequent tall-stock task. Record interruptions and where the container goes next. A quick pan pickup cannot answer whether the bottles can be removed or where a full replacement box waits during restocking.
Then repeat the restocking route: where the incoming containers arrive, how existing stock remains identifiable, which openings are occupied and whether the arrangement requires another bench or cabinet. Record the real operating controls with the responsible venue lead. Do not convert a demonstration into a universal ergonomic, energy or food-safety claim.
If staff time is part of the purchase case, measure the complete affected task with agreed conditions. This example contains counts and dimensions only. It offers no seconds saved per pick, wage saving or door-opening energy reduction.
Prepare the stock-and-access comparison brief
For your own supplier brief, record stock heights, retrieval counts, opening projections, alternative storage and unresolved configuration evidence. Replace the fictional inputs with actual evidence and leave unresolved decisions visible.
Please assess this complete stock list and retrieval/restocking route against the exact door, drawer or mixed configuration. Confirm the supported arrangement, open envelopes and included accessories. Identify what remains to be demonstrated before we rely on the proposal.
Compare underbench fridges with the same stock list, or send the brief to Atlantic Equipment. Choose the configuration that supports the whole task with identified evidence, rather than the one that looks most organised when empty.
Sources and example boundaries
Manufacturer pages checked 18 October 2026: Williams Australia Jarrah JL2R and Foster UK EP1/3H, device code 43-212. Their use here is limited to model-specific configuration and document questions. No current stock, Australian Foster offer, operating rating, product dimension or installed approval is asserted.
S1, all proposal dimensions, stock counts and retrieval counts are fictional. The calculations screen only the stated vertical heights and plan projections. Actual supported storage, permitted orientation, removal, installation, refrigeration duty and operating arrangements require their own assessment.
About this guide
Prepared by Atlantic Equipment. This guide connects an underbench fridge configuration to the stock and people it must serve. Its worked example shows why frequent pan retrievals do not settle tall-stock storage, and why a larger remaining floor strip does not establish a workable aisle. The editable brief keeps those decisions visible in the quotation.
