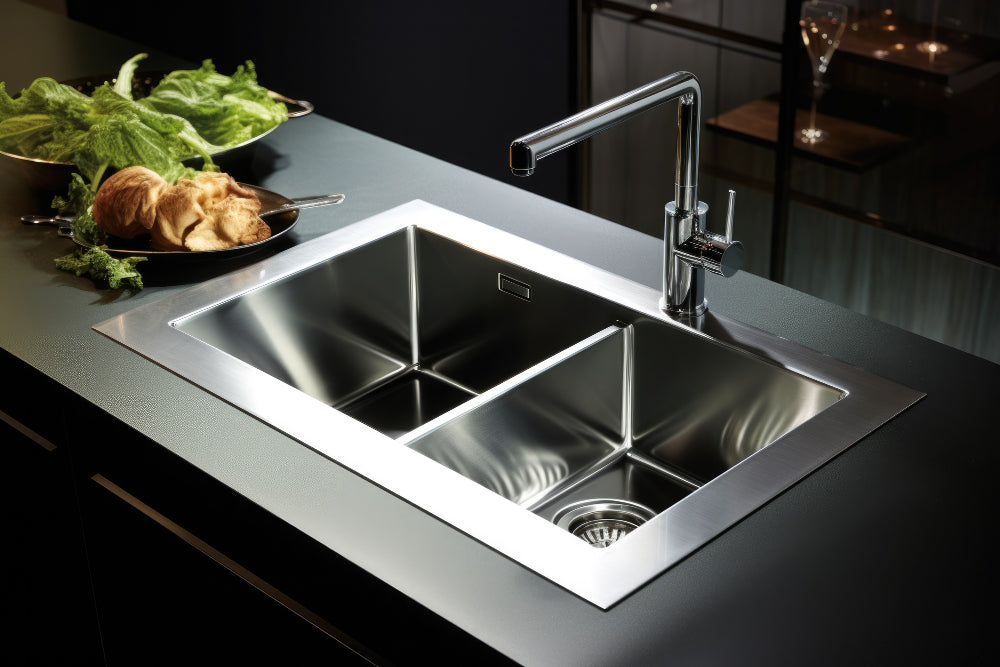

AI-generated general wash-station concept. It does not show the fictional inlet layouts or a confirmed pass-through connection, rack-parking arrangement, wash result or approved dirty/clean separation.
The new bench has two bowls. There is still nowhere to put the second prepared rack. Someone suggests the clean-side outlet because it is empty for the moment. The bowl count has answered a different question from the one stopping the dish line.
Choose a double-bowl dish inlet around the complete dirty-side task and the rack handoff to the dishwasher. Allocate the incoming returns, the work proposed at each bowl, prepared-rack parking and the machine interface separately. Then follow the clean-side route as its own task. Two bowls do not create two rack positions, two available operators or a demonstrated wash result.
Give both bowls a named job before adding them to the quote
A double-bowl dish inlet is a bench assembly intended to form part of a dishwasher's incoming station. Its suitability depends on the offered configuration and the complete task. A freestanding double sink with similar outside dimensions is not automatically the same thing.
Record the actual items, return pattern and required preparation before loading the selected machine. Name the proposed use of each bowl, the staff and equipment needed, the item condition at each handoff and the responsible person who approves that process. Do not use this guide as a soaking, rinsing, chemical or cleaning procedure.
Ask why the second bowl is needed. It may support a separately established preparation task; it may also occupy space the station needs for returns or racks. If two tasks are intended to overlap, the proposal needs evidence for the people, access, equipment and process involved. Two physical bowls alone prove none of those.
Use the pass-through dishwasher station guide for the broader machine, staff and landing decision. This article resolves the double-bowl inlet's preparation and rack-parking brief rather than choosing a dishwasher from a nominal hourly rate.
Worked layout: two bowls, one missing rack position
Every offer, reservation, rack, site measurement and occupancy state in this example is fictional. All dimensions are millimetres. The buyer wants space for two prepared racks at the same time while the machine is unavailable. “Prepared” here means the nominated pre-machine task is complete; the rack is still on the dirty side, not cleaned or sanitised.
Assume each rack's complete proposed footprint is 500 × 500. Reserve a 400 × 600 return landing and a 1,100 × 700 bowl-and-task block. The latter is an invented combined reservation, not the sum of two bowl openings or the dimensions of a product. The preparation method, rack support and loaded envelopes all remain unproved.
Scroll the diagram sideways to read every label.
| Reservation | Offer A | Offer B | Unresolved condition |
|---|---|---|---|
| Return landing | 400 W × 600 D | 400 W × 600 D | Actual return loads and staff access |
| Combined bowl/task block | 1,100 W × 700 D | 1,100 W × 700 D | Supported bowl applications and complete working task |
| Prepared-rack parking zone | 600 W × 600 D | 1,050 W × 600 D | Complete loaded racks, supports, access and machine transfer |
| Total allocated run width | 400 + 1,100 + 600 = 2,100 | 400 + 1,100 + 1,050 = 2,550 | Actual clear surface, edges, projections and site interfaces |
| 500 × 500 rack footprints side by side | One; a second needs 1,000 width against 600 | Two use 1,000 width, leaving 50 | Paper rectangles only; no loading or handling approval |
| Against an assumed 2,600-wide inlet-only site allocation | 500 width remaining | 50 width remaining | Remainder is not an installation or movement clearance |
Scroll the table sideways to see every column.
A has one paper rack position. Two side-by-side racks would require 1,000 mm and exceed its 600 mm zone by 400 mm. Front-to-back they would require 1,000 mm depth against 600, also 400 mm too much. This checks those two arrangements; it does not prove every alternative packing or handling proposal impossible.
B preserves the return landing and bowl/task block while adding 450 mm of parking width. Its two rack footprints leave 50 mm total width and 100 mm depth. Those are arithmetic remainders, not a gap required between racks, a supported edge position or room for hands. The complete rack transfer still needs demonstration.
The assumed 2,600 mm site allocation concerns only this inlet run. It excludes the dishwasher and clean-side outlet. It does not establish an aisle, access to services or the complete station's fit. B's 50 mm remainder cannot be spent again as proof of all those other requirements.
Track occupied places when a rack cannot move
Call the prepared racks R1 and R2 and the next incoming return R3. Give clean rack C1 its own outlet position. These labels show what the layout must accommodate at a requested handoff; they do not prescribe a machine sequence or imply a cycle time.
| Requested state | Offer A | Offer B | What must remain separate |
|---|---|---|---|
| R1 waits prepared; R2 is in the bowl/task area; R3 arrives | R1 uses its sole parking position; R3 uses the return landing | R1 uses parking P1; P2 remains free; R3 uses the return landing | C1 occupies the clean outlet, outside the dirty allocation |
| R2's preparation is complete while R1 still cannot enter the machine | No second nominated position. Hold or revise the release/route; the brief is unresolved | R2 has paper position P2 beside R1, subject to the access check | Neither bowl count nor an apparently empty clean surface authorises mixed staging |
| The supported machine-loading handoff becomes available for R1 | One position can be released; the next preparation handoff still needs an agreed plan | R1 can release P1; moving R2 to the loading handoff is a separate supported task | R3 does not become prepared simply because a rack position clears |
| A newly accepted clean rack needs the outlet while C1 still occupies its only nominated place | Clean-side receiving question remains unresolved | The same clean-side question remains unresolved | Extra dirty-side parking has not added a clean-side receiving position |
Scroll the table sideways to see every column.
B answers the example's two-rack waiting requirement better than A. It does not solve the final clean-side receiving state. The buyer must resolve where the accepted clean rack goes, who moves C1 and what happens if that destination is unavailable. Do not borrow the dirty parking area to make the drawing appear complete.
The same test applies when the delay is elsewhere: a return landing fills, the nominated bowl task is not ready, or staff cannot reach the rack. Record the blocked handoff and its responsible owner. An inlet bench can support a proposal; it cannot make every station task happen continuously.
Prove the dishwasher connection, not just the bench height
Identify the exact dishwasher, rack and bench versions on the same drawing. Show the inlet side from a stated viewpoint, the supported rack travel, the connection detail, level/support requirements and any obstruction at the interface. A matching nominal working height does not establish a continuous supported rack path.
Do not order from “left” or “right” alone. Have the supplier mark the machine position and direction of feed on the actual proposed arrangement. Straight and corner layouts may require different connections or task space; a drawing that looks compact is not proof of a supported corner interface.
Stoddart's Simply Stainless SS09 double-sink inlet page separately offers inlet position and size choices, identifies a supplied sink waste and says the unit arrives flat packed. Its linked Revision B specification sheet dated 26 August 2024 also distinguishes product codes and shows a notch detail. These are reasons to match configuration, supplied parts and the actual interface; they are not proof that any SS09 connects to every dishwasher.
The fictional A and B dimensions are not SS09 specifications. No manufacturer load rating, bowl volume, electrical requirement or operating instruction is adopted in this guide. Obtain current matched documents and confirmation for the Australian offer rather than transferring a diagram detail from a different bench version.
Keep preparation, clean receiving and installation scope visible
Draw the dirty returns route and the accepted-clean route with their actual destinations. Include people, carts, removed material, rack storage and adjacent doors or appliances. Identify where tasks could conflict and have the venue's responsible personnel resolve the process and layout. A one-way arrow alone does not establish hygiene compliance.
Include the faucet or pre-rinse equipment only as part of a separately supported task and installation proposal. Its position, movement, supply, waste and access can affect the usable work area. The example's clear rectangles do not authorise moving a service or positioning an accessory.
Have the relevant providers resolve the site-specific water, waste, support, assembly and machine-interface requirements. Require a quote that identifies included wastes, connection parts, shelves, brackets, installation and exclusions. Stainless construction or two deep bowls do not establish permitted loading, a universal cleaning method or a complete installed price.
For care and handover, use the matched bench, accessory and dishwasher instructions and the actual responsibilities agreed with the providers. This purchasing guide supplies no chemical, soaking, pre-rinse, cleaning or sanitising procedure.
Ask for a demonstration of the full rack handoff
- Use representative loaded racks and returns. Name the actual ware, supported preparation state, loaded envelope and the acceptance evidence required by the venue.
- Occupy the other places. Demonstrate what happens with one prepared rack waiting, another task finishing and the return landing in use. An empty bench hides the example's conflict.
- Show the complete interface. Confirm the exact machine, inlet side, rack supports and transition, including the permitted assembly and loading conditions.
- Follow the clean destination. Retain the receiving and onward-storage task even when the inlet itself passes. Keep unresolved clean-side capacity visible.
- Change the proposal when a handoff fails. Reallocate space, revise the supported task or assess another offer, then repeat the affected checks. Do not retain a pass after deleting its conditions.
Send a rack-parking brief with your inlet enquiry
Prepare the actual return and preparation tasks, required simultaneous rack positions, complete rack envelopes, machine identity, chosen inlet side and a site drawing with dirty and clean destinations. Mark what has been measured, what is proposed and who must resolve each remaining answer.
Please quote the complete double-bowl inlet arrangement for these tasks and rack positions. Match the bench, rack and dishwasher interface, show the usable preparation and waiting areas, demonstrate the blocked-handoff cases and identify the supplied parts, assembly and site responsibilities. Keep unresolved clean-side receiving and process questions visible.
Send your inlet and rack-parking brief to Atlantic Equipment. For a wider equipment shortlist, use the commercial dishwasher buying guide; two bowls are one station choice, not a machine-performance rating.
About this guide
Prepared by Atlantic Equipment. This guide supports a dishwasher purchase by separating double-bowl preparation space, prepared-rack parking, machine connection and clean receiving. The offers, dimensions and occupancy states are fictional. Stoddart's cited SS09 page and dated manufacturer sheet were checked on 18 October 2026 for narrow configuration and supplied-scope distinctions. No actual fit test, throughput, wash result, hygiene approval or operating method is represented.
