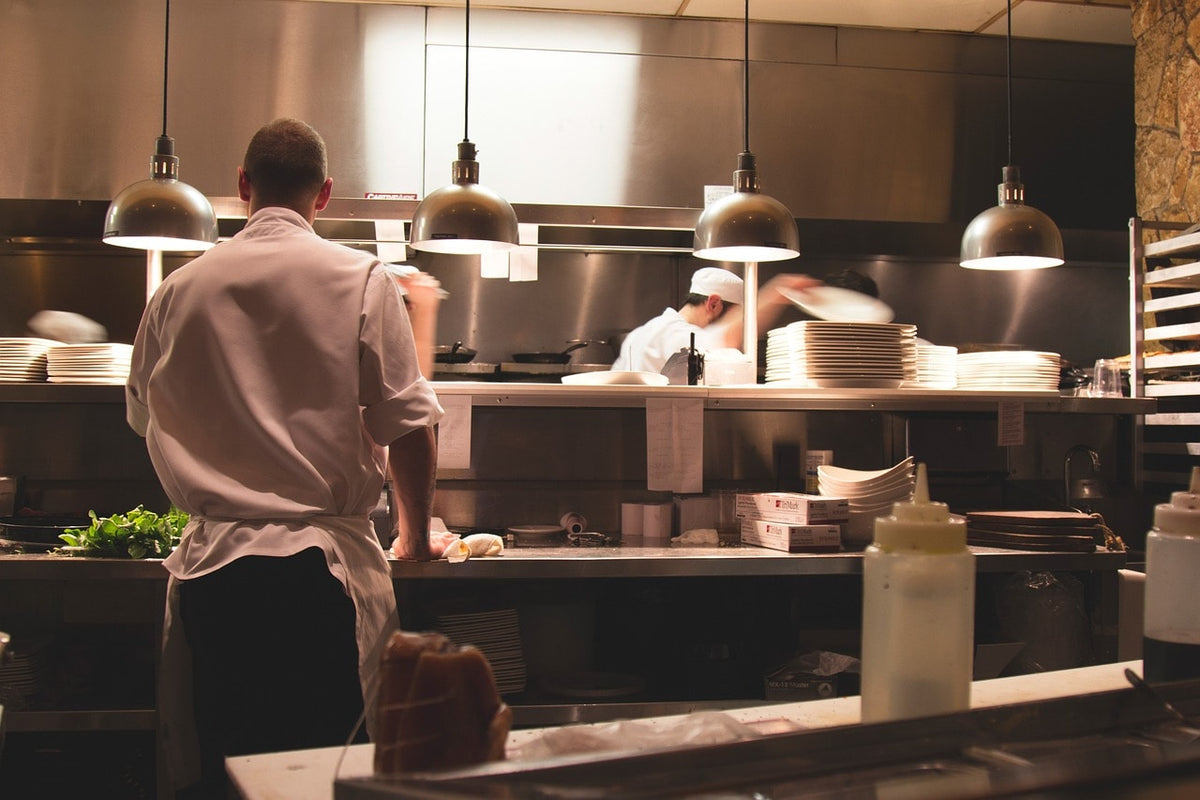

Existing kitchen image for context, not the fictional stock-relocation case or evidence of an approved storage, working or equipment arrangement.
There is room for the new appliance—once those six cartons leave the bench. They move onto a trolley, the bench looks clear and the plan gets a tick. Then someone opens the adjacent door and the trolley has to move back.
A useful kitchen storage change gives every displaced item a supported destination and keeps the equipment's working space available. Follow the stock through receiving, storage, retrieval and replenishment. Otherwise, “making space” can mean moving an obstruction out of the photograph.
Name the equipment space you need to release
Mark the area that must remain available and the task it serves. Is it an appliance location, preparation surface, collection point, door movement, access for care or a route shared by staff? Record the appliance outline separately from the complete working and installation requirements.
Then identify what currently occupies that area. Distinguish stock that belongs in suitable storage from equipment still needed for the menu. Relocating supplies is not evidence that a multi-function appliance can replace another machine. That equipment decision needs its own menu, configuration and site assessment.
This guide follows a stock move. The separate usable worktop-space guide deals with simultaneous worktop reservations. Here the first question is where the displaced stock actually goes—and whether it stays there when the kitchen is busy.
Worked move: six cartons off a 1,200 mm bench
All cartons, dimensions, locations and proposals in this case are fictional. Six supply cartons occupy a nominal 1,200 × 650 mm bench. Each complete carton envelope is 400 mm front width × 300 mm depth × 250 mm height. The stated arrangement is one layer, three across and two deep. It is an invented layout, not permission to store these supplies together or use this bench for them.
| Item or reservation | Before | Intended after | Still to establish |
|---|---|---|---|
| Cartons S1–S6 | All six on the nominated bench | Six named positions in reserve location R | Suitable contents, supported loads and access to each position |
| Bench rectangle | 1,200 × 650 mm; cartons occupy a 1,200 × 600 mm block | No stock reserved here | Complete appliance, task and installation requirements |
| Next receiving event | Two additional cartons expected in this fictional plan | Positions R7 and R8 reserved, if both are available and suitable | Actual delivery quantities, conditions and authorised receiving arrangement |
| Route to retrieve stock | At the bench | From R to a named point of use | Who retrieves it, destination space and conflicts with other tasks |
Scroll the table sideways to see every column.
The carton block is 3 × 400 = 1,200 mm wide and 2 × 300 = 600 mm deep. Its footprint is 6 × 0.4 × 0.3 = 0.72 m². The bench rectangle is 0.78 m². The remaining 0.06 m² is only an area difference; it does not establish a useful working position around that block.
Removing all six cartons releases that rectangle from this stock reservation. It does not certify the bench for an appliance. The offered equipment's support, projections, services, required surroundings and the team's complete task remain unresolved. Keep those questions on the equipment brief rather than turning “empty bench” into “installation approved”.
Reject a destination that borrows another task's space
The buyer first proposes a 900 × 500 mm trolley. On the fictional drawing, one corner occupies a 200 × 500 mm part of a marked door-access zone. That is a 0.10 m² overlap, not a legal clearance calculation. It is enough to reject this drawn position because the plan has assigned the same area to two conflicting tasks.
| Proposal | What changes | Failure or open question | Decision |
|---|---|---|---|
| A: park the loaded trolley beside the bench | Six cartons leave the bench | Drawn trolley corner overlaps the nominated door-access zone by 200 × 500 mm | Reject this location; moving the trolley whenever the door is needed is not a resolved plan |
| B: allocate six positions in reserve storage | All current cartons have a named destination | No position is allocated for the next two-carton receiving event | Incomplete: identify receiving capacity or change the delivery/stock arrangement with evidence |
| C: assess reserve location R with eight positions | S1–S6 allocated; R7/R8 reserved for the stated delivery | Support, appropriate storage, actual retrieval and receiving tasks unverified | Advance for assessment; count accounted for, suitability not approved |
Scroll the table sideways to see every column.
Proposal C uses a fictional storage-unit footprint of 1,200 × 500 mm, or 0.60 m², elsewhere in the room. The move has not made stock disappear or created 0.72 m² of net floor area. It exchanges a bench reservation for another storage footprint plus an access task. The value, if demonstrated, is releasing the particular equipment location that matters.
A mobile unit also needs an actual parking and movement arrangement. “We can roll it aside” leaves the destination unspecified. Draw where it goes, how it gets there and what happens while that space is being used by someone else. Do not use an exit, door zone or another workstation as an unnamed overflow location.
Check the next delivery before calling the move finished
Six current cartons plus two incoming cartons require eight positions if none has left storage before that receiving event. Proposal B provides six. Its two-position gap can put stock straight back onto the newly cleared bench.
If the buyer proposes lower stock or different deliveries, record the changed commitment. Establish what leaves storage, where it goes and when the next delivery arrives. Do not assume the busiest service will consume two cartons simply because the arithmetic needs two empty positions. A smaller order may also change supplier terms, delivery work or stock availability; those are facts to obtain, not savings to invent.
In Proposal C, eight labelled spaces are a count allocation. A label does not establish a load rating or a suitable storage environment. Record carton identity, complete dimensions, masses, required conditions and the actual storage configuration. Where storage conditions or segregation matter, the venue's responsible personnel and applicable requirements determine suitability; this example supplies no food-storage method.
Assess retrieval at the intended point of use as well. A carton carried back to the equipment bench and left there recreates the original reservation. Name the allowed destination for each transfer and the person responsible for it, then observe the complete arrangement through the relevant receiving and service conditions.
Use storage specifications without borrowing their promises
Current manufacturer documentation can prevent an expensive assumption. Cambro's High-Density Top Rail Mobile Units page, checked on 18 October 2026, describes a coordinated mobile/stationary system and specifically distinguishes it from existing Elements XTRA products that are not compatible or convertible for that use. That is a useful compatibility lesson, not a reason to attach a track to an existing shelf or expect every mobile unit to work in one system.
For the actual proposal, identify the supplied storage range, components, configuration and installation requirements. Obtain the documented loading conditions, including the relevant position and complete unit, and establish the actual contents. Do not transfer a marketing capacity percentage, another model's shelf rating or a photograph's stacking arrangement into the relocation plan.
Access also includes the people and the route. SafeWork NSW's manual-task guidance covers lifting, pushing and pulling and considers the task, equipment and physical environment. Use the responsible workplace team to assess the actual change; height or wheels alone do not prove an easier or safer retrieval task.
Detailed shelf-position and retrieval geometry belongs in the shelving access guide. This relocation plan must first establish that the proposed storage system, receiving commitment and route can keep the equipment space available.
Release the equipment space only when both plans agree
| Evidence | Stock relocation decision | Equipment decision |
|---|---|---|
| Before/after register and actual stock peak | Every displaced and incoming item has a suitable proposed destination | The nominated area stays free through receiving and service |
| Matched storage documents and actual contents | Loading, configuration and storage suitability resolved by responsible providers | No stock location compromises the equipment's documented requirements |
| Complete access and movement drawing | Retrieval, parking and point of use assessed without the rejected overlap | Doors, operation, service access and surrounding tasks remain supported |
| Exact appliance and installed scope | Stock plan responds to the actual proposed equipment arrangement | Support, services, installation and handover responsibilities independently confirmed |
Scroll the table sideways to see every column.
If either proposal changes, revisit the affected decision. A different storage unit may change the route. A different appliance may change the required surroundings. Keep the agreed stock and equipment drawings together so an apparently small substitution does not revive the original obstruction.
A useful enquiry is specific: “These six cartons must leave this bench. Two more arrive at this event. Here are the proposed eight positions and the rejected trolley location. Please resolve supported storage and retrieval, then compare the exact equipment and installed scope for the released area.”
Send Atlantic Equipment your stock-relocation and equipment brief. Use the commercial kitchen equipment planning guide to connect this local change to the wider menu, layout and purchasing plan.
About this guide
Prepared by Atlantic Equipment. This guide helps kitchen buyers release a defined equipment working area without losing displaced stock or moving the obstruction elsewhere. Its six cartons, delivery event, dimensions, storage positions and proposals are fictional. Cambro's compatibility distinction and SafeWork NSW's complete-task context were checked on 18 October 2026. No installed layout, load rating, storage process, safety improvement, stock reduction or appliance suitability is established by the example.
